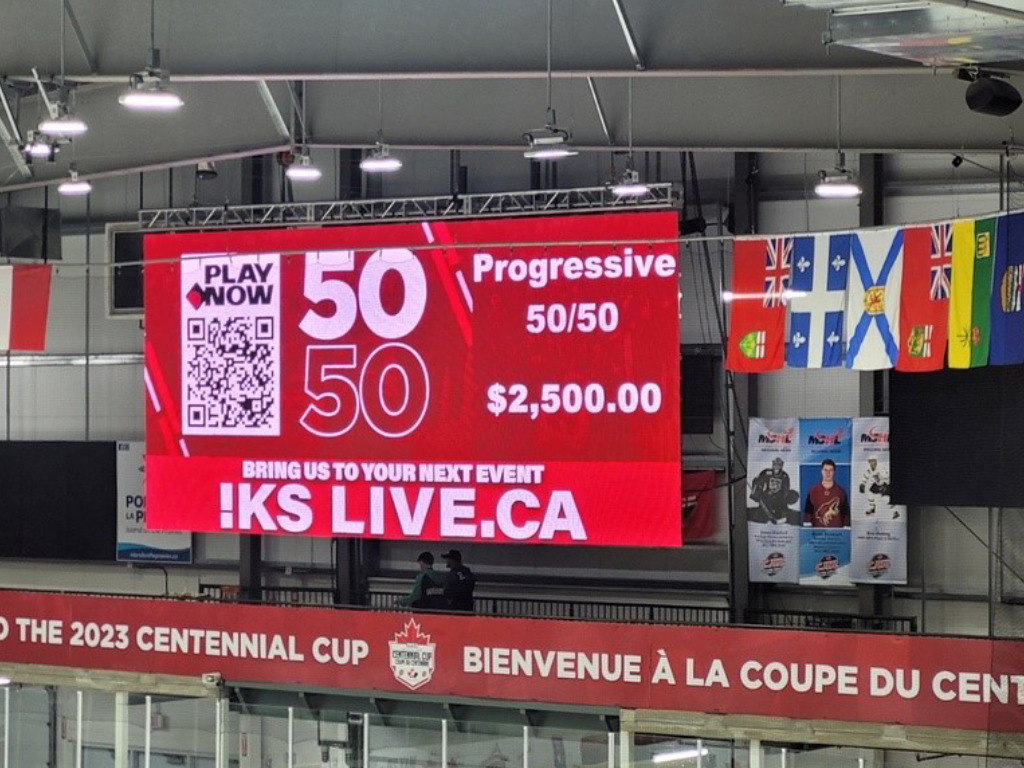

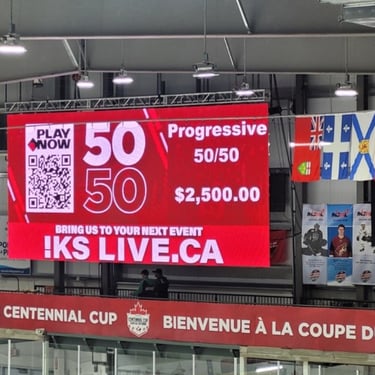

    IKS Live provided the digital display screens in Portage la Praire, MB for the 2023 Centennial Cup.

Channels

What We Do

Pumped about live event video production and custom content creation.

Years ago we saw the opportunity to provide live, specialized in-studio and on-location programming – so we jumped on it.

Our unique combination of broadcast/live event [&] fixed visual asset experience gives our clients a broader knowledge base to draw from – to deliver the very best experience. We can come to you and work with your event space, or you can come to us and utilize our state-of-the-art studio space and technology. From live sports to talk shows, concerts to corporate videos; the IKS team has produced well over 100 events by working alongside our clients with their scripts and coordinators to help achieve successful events.

We bring not only valuable live event knowledge; our talented motion graphic designers will work in-studio to produce high quality, visually stunning works to accompany your production.

If you’re looking for a that’s pretty cool  factor, you’ve found it!

Services

Pre-Production

We have a dedicated team that works with you beforehand for graphics and scheduling, prior to the production.

Post-Production

Our team can edit the visual and audio materials of the production; cutting and assembling the raw footage, adding music, special effect, etc.

All-In-One Streaming Fly Pack

Our compact and complete streaming service.

Productions

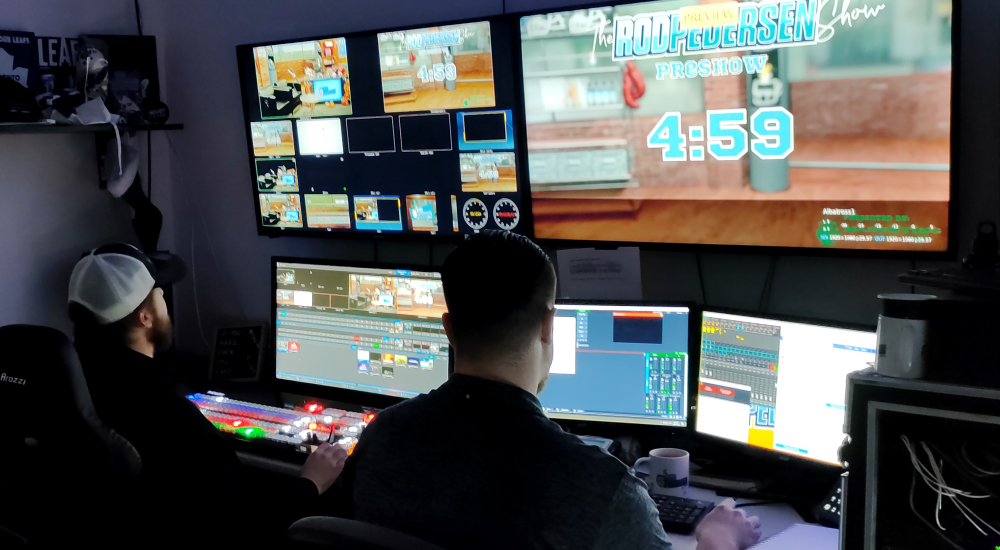

The Rod Pedersen Show

SJHL Weekly

SJHL Insider


We are the production partner for the Rod Pedersen Show.
Our productions have a combined total of 1.5 million people reached.

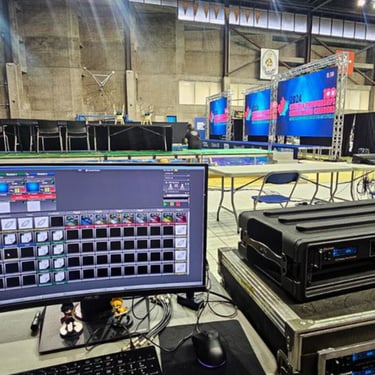

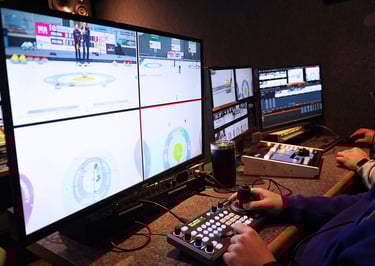

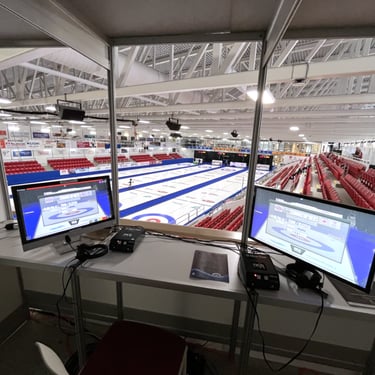

Gallery

Rental Equipment & Studio Space

  • • Live Video In/Out
  • • 5 Channels
  • • Combinations of DisplayPort/DVI, HD-SDI (Single or Dual Channel) Output Formats
  • • Single or Dual Channel SDI Key&Fill, Chroma-Keying, or Native Live Video Ingest Keying Options
  • • 2 Real-Time Data Inputs
  • • 2 XML Sources
  • • Advertising Tracking and Reporting
  • • Crowd Prompts and Headshot Clips
  • • Scoring Automation - Automatic Clip Triggering and Graphic Rules for Bug Graphics
  • • External Automation - External Clip Triggering Variable Updates, Inventory Querying via TCP External Control API
  • • Balanced, Unbalanced or Embedded SDI Audio Out
  • • Supports Pixel Remapping (Ring, Ribbon, Fascia, ScoreTable Style Displays
  • • Remote Triggering from a Separate LaunchPad
  • • 4RU Rack Chassis
  • • 1TB Solid State RAID10 Storage
  • • 64 Bit, Windows Embedded Standard 7 OS
  • • 1 Year Warranty - Includes Nights and Weekend Support
  • • Optional Touchscreen

For Motion Rocket Server information, you can download the PDF here.

Content Specifications Unit
Product P8.925 -
Application Outdoor -
Pixel Pitch 8.925 mm
Constitution SMD3535 -
Driving Method 1/4 -
Brightness 5500 nit
Working Voltage AC 220V/110V ± 10% -
Panel Size 500 x 1000 mm
Material Aluminum -
Panel Weight 13 kg
IP Grade IP67 -
Viewing Angle 140°/140° °
Refresh Rate 1920 Hz
Gray Scale >14 Bit
Hanging Height 10 mm
Working Temperature -10~65 °C

You can download a PDF of the information below here.

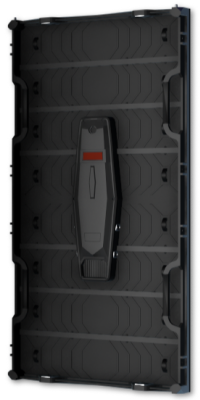

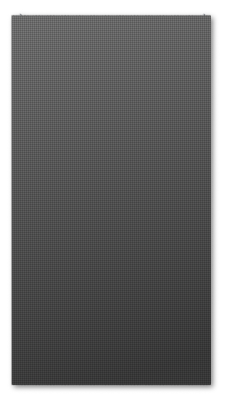

Content Specifications Unit
Product 3.9 -
Application Indoor -
Pixel Pitch P3.9 mm
Module Resolution 128*256 pixels
Pixel Configuration SMD 2121 Nation Gold Star -
Pixel Density 65,536 pixel/m2
Driving Method 1/16 -
Brightness 1500 nits
Viewing Angle 140 °
Refresh Frequency 1920* hz
Grey Scale 16** bit

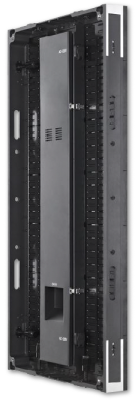

Cabinet Size 500 x 1000 mm
White Balance Brightness 1500 cd/m2
Power Consumption Max:400 | Average:240 w/m2
Cabinet Weight 13 kg

*Supports high refresh rate - depends on system configuration.
**Depending on the system and IC configuration.

You can download a PDF of the information below here.

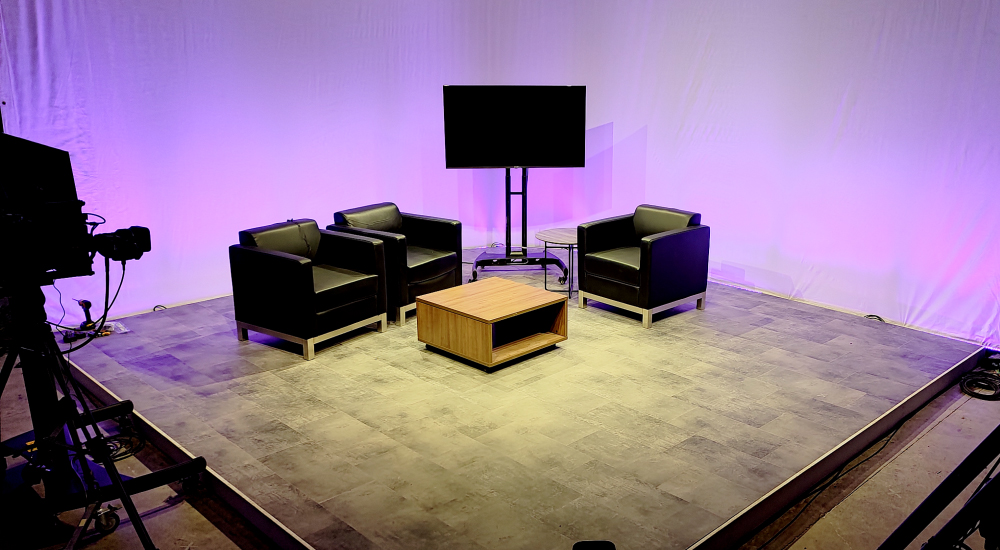

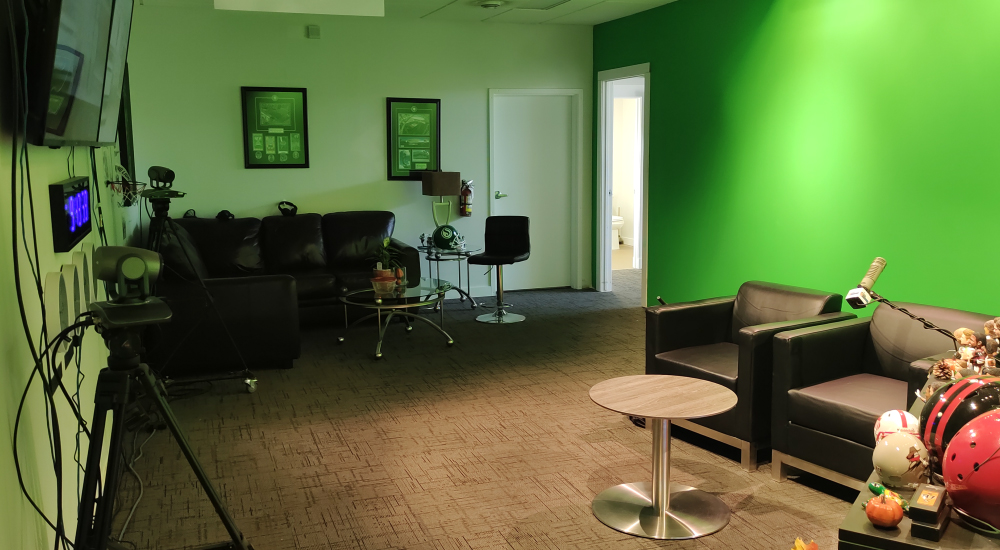

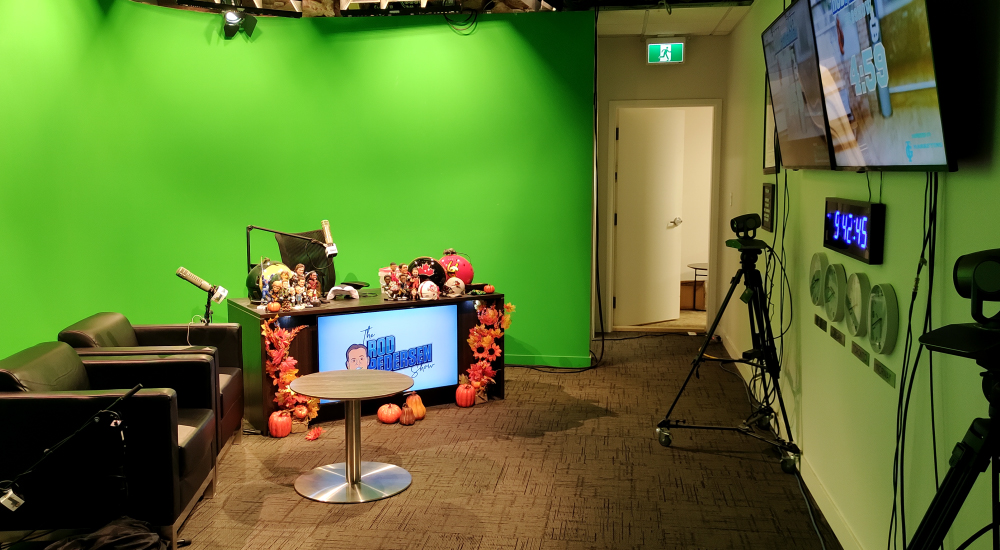

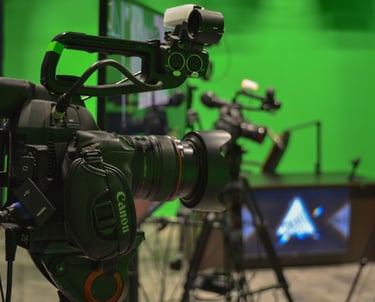

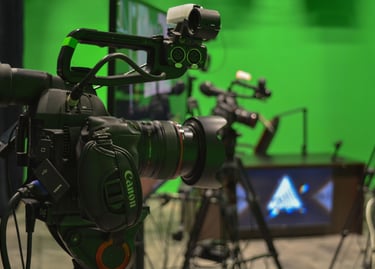

  • • Full HD 1080p Streaming and Recording Studio
  • • 32'x14' Chromakey or Conventional Cyclorama
  • • LED Lighting
  • • 8-Camera Multicam Production
  • • Sony PMW and BRC Series Cameras
  • • Bolin 7 Series Cameras
  • • Dual Remote Guest Capability
  • • Live Motion Graphics
  • • Full Resolution Streaming (Any Source)
  • • Facebook Comment Integration
  • • 1GB Symmetrical Services (Real Fast Internet)
  • • 4K Streaming and Recording Studio
  • • 24'x10' Chromakey Cyclorama
  • • LED and Incandescent Lighting
  • • Tricaster TC1 4K Production Platform
  • • Bolin 8 Series 4K Cameras
  • • Motion Graphics
  • • Dual Remote Guest
  • • Live Motion Graphics
  • • 1080p Streaming (Any Source)
  • • 4K Streaming (Select Sources)
  • • Facebook Comment Integration
  • • 1GB Symmetrical Services (Real Fast Internet)

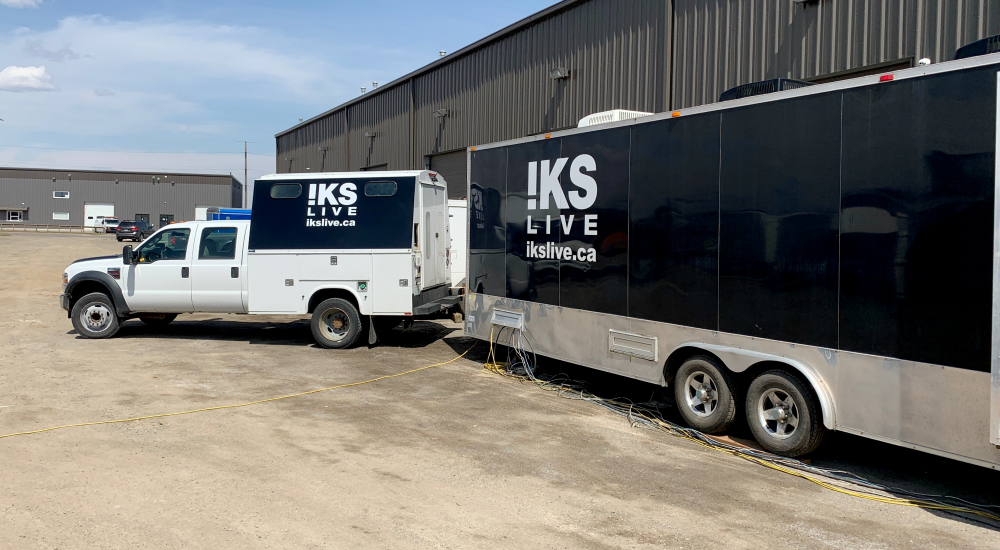

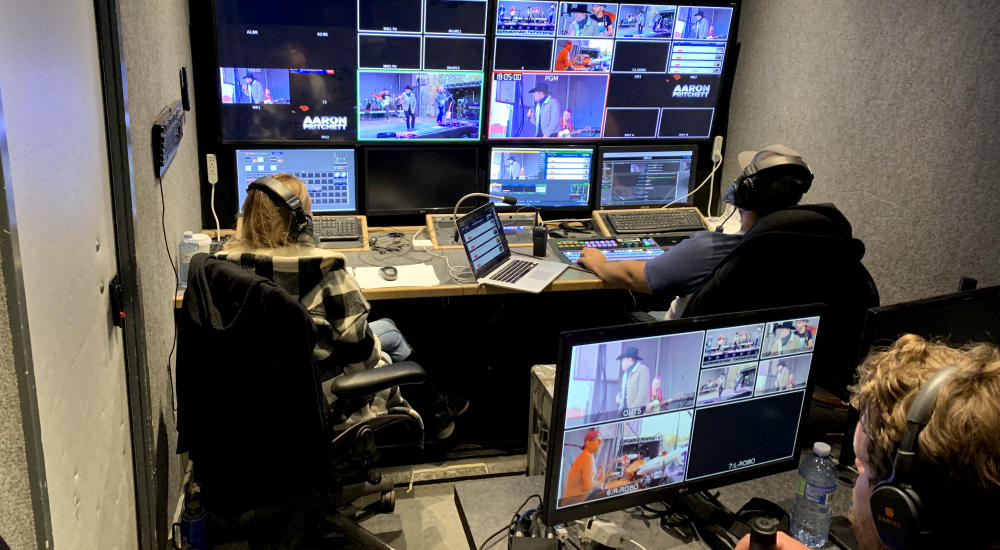

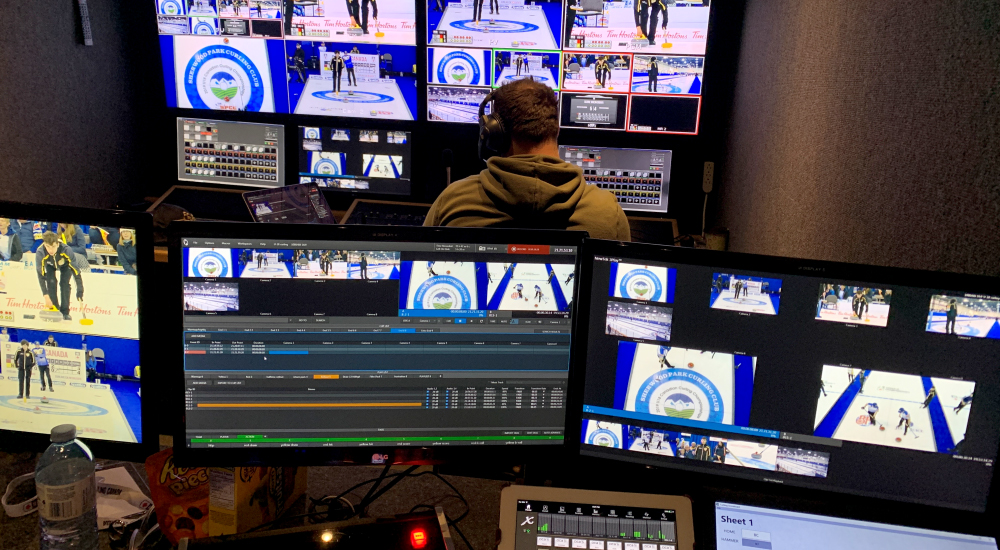

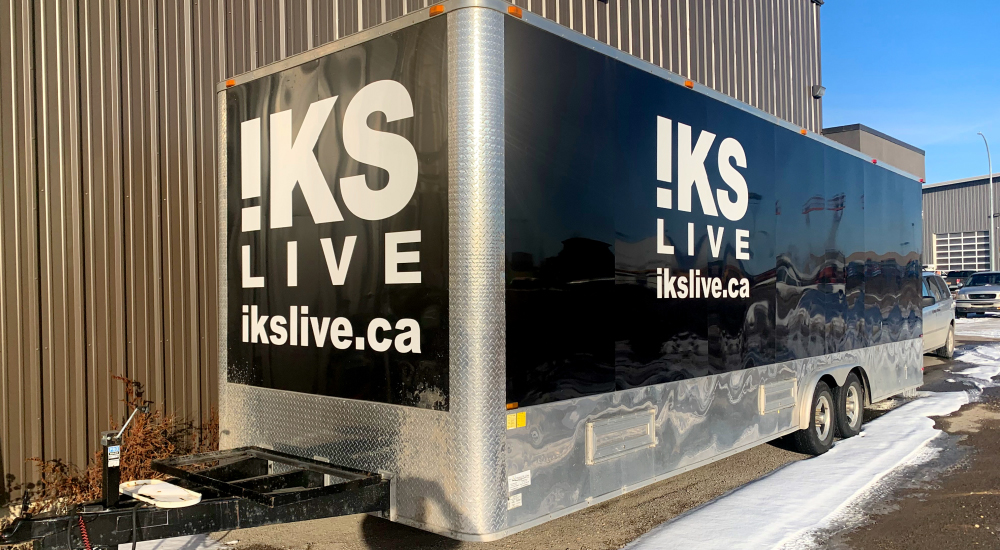

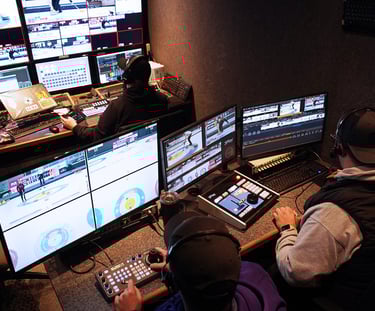

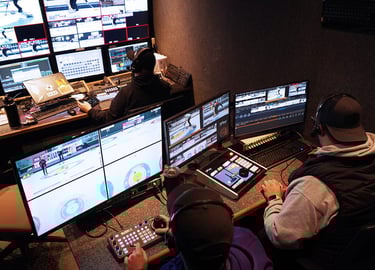

  • • 4K/Full HD Production Mobile
  • • Ross Carbonite Ultra 4K Switching Platform 24-Input - 18 Output

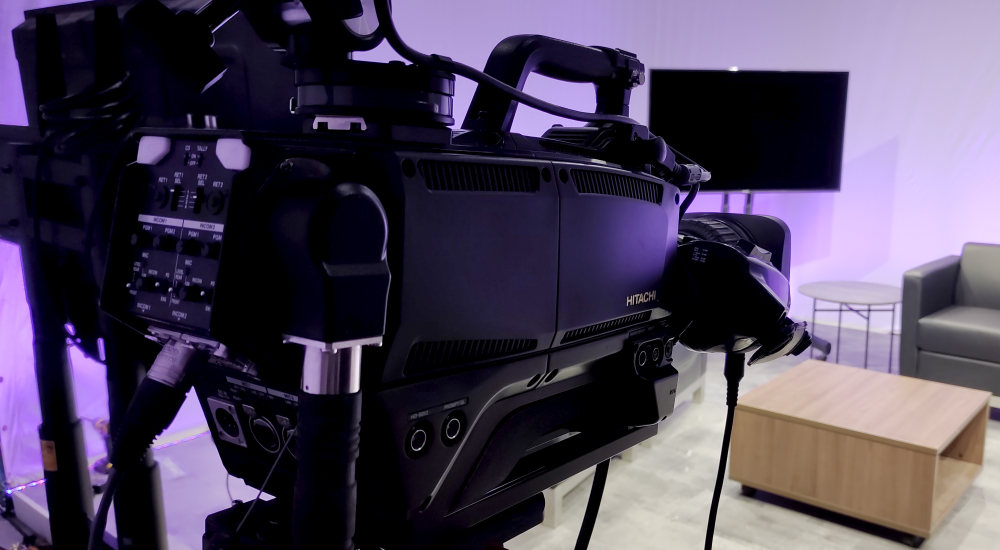

  • • 5 x Hitachi SMPTE Fiber-optic Broadcast Cameras
  • • 2 x Sony BRC-H900 Robotic Cameras
  • • 4-Channel Newtek 3Play Replay System
  • • Midas M32 - 32 Channel Audio System
  • • 4 Channels of Intercom with IFB, Announcer Consoles, and Wireless
  • • Motion Rocket Motion Graphics with Proof of Play
  • • Touchscreen Telestrator
  • • Remote Guest Capability
  • • 4K and 1080p Streaming Capabilities (Any Source)
  • • LED Sign Control and Management
  • • Facebook Comment Integration (Limits Call-in Guest to 1)

For further information, view the PDF by clicking here.
